FNV Condenser

Features:

The air-cooled condenser is a heat-dissipating device that is cooled by air for use in Freon refrigeration equipment. There are five main types of air-cooled condensers produced by our company: FNH type, FNV type, FNU type, FNVB type, TP type, FNH type adopts side blowing form, FNV type, FNVB type, FNU type, TP type adopts top The form of the hair dryer.

This series of products has the following characteristics:

1. The shell is made of high quality steel plate, the surface is sprayed, corrosion resistant and beautiful in appearance;

2. The coil tube adopts copper tube misalignment or parallel mode, and the mechanical expansion tube is used to make the copper tube and the fin tightly combined, and the heat exchange effect is good;

3. The product has passed the air tightness test of 2.5Mpa and the system sewage treatment;

4. Applicable to R22, R134a, R404a, R407c and other refrigerants;

5. FNH type condensers adopt high-winding and low-speed motors, which have low noise and beautiful appearance, and can be widely used in refrigeration equipment with high noise requirements;

6. FNV type condenser has large windward surface and good heat exchange effect, and is equipped with low noise motor, which can be widely used in large condensing units.

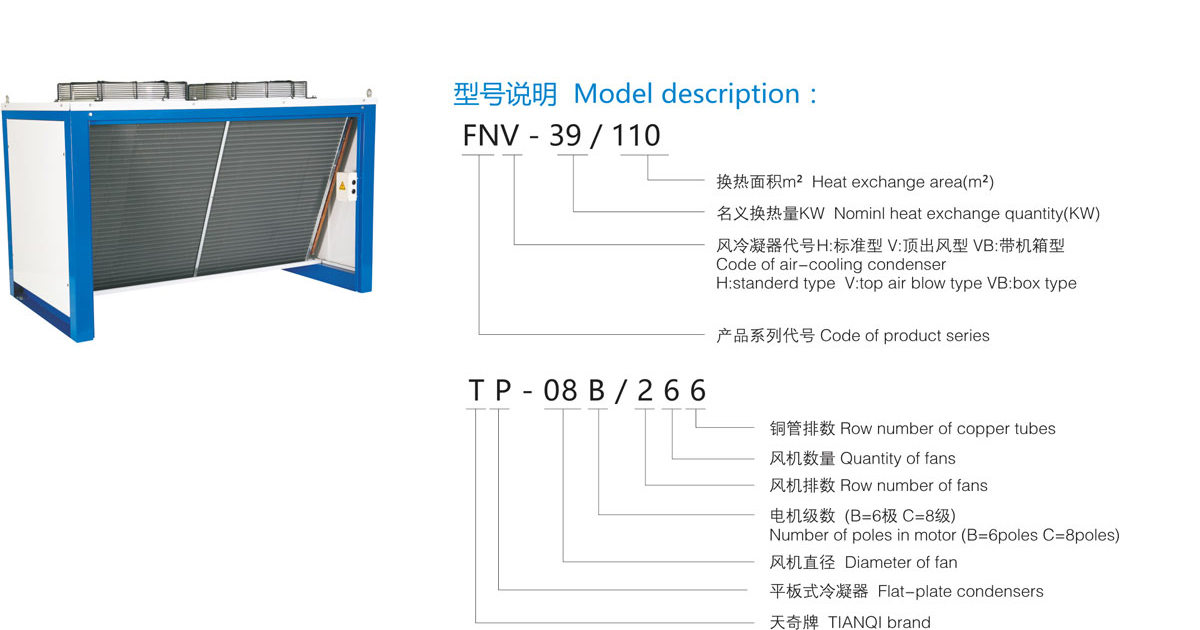

Product model and corresponding parameters:

Specification model	Exhaust heat	Heat exchange area	Fan					Intake pipe diameter	Outlet pipe diameter	Dimensions			Installation size		Weight
	Exhaust heat	Heat exchange area	Quantity	Blade diameter	Air volume	Power	Voltage	Intake pipe diameter	Outlet pipe diameter	L	B	H	D	E	Weight
	W	㎡	N	Φmm	m³/h	W	V	Φmm	Φmm	mm	mm	mm	mm	mm	kg
FNV-25/72	24840	72	1	550	8720	600	380	22	16	950	900	880	870	650	82
FNV-30/87	30102	87	1	600	10820	780	380	25	16	1100	1000	860	1020	750	116
FNV-39/110	39050	110	2	500	2X6570	2X450	380	25	16	1400	900	880	1320	650	131
FNV-45/130	44850	130	2	550	2X8720	2X600	380	28	19	1550	900	880	1470	650	142
FNV-55/155	55025	155	2	550	2X8720	2X600	380	28	19	1600	1000	980	1520	750	163
FNV-64/185	63825	185	2	600	2X10820	2X780	380	28	22	1700	1000	1080	1620	750	187
FNV-73/210	72660	210	2	630	2X12200	2X800	380	32	22	1750	1000	1180	1670	750	213
FNV-83/240	82800	240	2	710	2X15000	2X1200	380	32	22	1900	1175	1260	1820	925	264
FNV-100/280	99980	280	3	600	3X10820	3X780	380	35	25	2350	1000	1180	2270	750	268
FNV-104/300	103800	300	2	800	2X19000	2X1300	380	35	25	2250	1175	1260	2170	925	308
FNV-111/320	111040	320	2	800	2X19000	2X1200	380	38	25	2350	1175	1260	2270	925	315
FNV-125/360	124560	360	3	630	3X13200	3X800	380	42	28	2650	1175	1260	2570	925	328
FNV-138/400	138400	400	3	710	3X15000	3X1200	380	42	28	2950	1175	1260	2870	925	404
FNV-166/480	165600	480	3	800	3X19000	3X1300	380	54	28	3400	1175	1260	3320	925	433
